Sheet & Plate in Standard Formats and Special Sizes
Flat-rolled material to European and US standards, from stock or sourced on short notice for special formats. Certified stockholder and processing facility to AS/EN 9100 and AS/EN 9120.
Request a QuoteSheet & Plate for Aerospace, Defence and Mechanical Engineering
Our flat-rolled supply programme ranges from precipitation-hardening stainless steels to low-alloy quenched and tempered steels, in standard formats to European and US standards. The most common grades are held in stock; unusual materials and formats we source on short notice.
Cut lengths are supplied cost-effectively up to 200 mm thickness to your specification, including a 3.1 mill certificate to EN 10204 and export-ready packaging to IPPC standard. For details on our processing capabilities, see the Processing & Custom Services section.
In addition to steel grades, we also source and stock sheet and plate in aluminium and nickel-base alloys such as Inconel® on request.
- Product Form
- Sheet & plate, flat-rolled
- Thickness Range
- from stock approx. 0.1 – 6 mm, cut up to 200 mm*
- Cutting
- Custom size, European & US standards
- Certificate
- 3.1 mill certificate (EN 10204)
- Certification
- AS/EN 9100 & AS/EN 9120
- On Request
- Aluminium & nickel alloys (e.g. Inconel®)
*Guide values, dependent on grade and availability — see the formats section for details.
Five Alloys That Shape Our Sheet & Plate Programme
1.4544 (SAE 321) is by far our deepest stock and our recommendation for the shortest lead time. The other four materials round out our core programme and are also regularly available from stock or on short lead time.
Titanium-stabilised austenitic chromium-nickel steel with good elevated-temperature strength and weldability. By far our deepest stock in the sheet programme — available from stock in nearly all common thicknesses from 0.4 to 5.0 mm.
Martensitic precipitation-hardening chromium-nickel-copper steel with high strength combined with good toughness and corrosion resistance. Proven for highly stressed sheet components in aerospace.
Precipitation-hardening chromium-nickel-copper steel with a broad property range. Widely used as sheet and plate in aerospace, mechanical engineering and defence.
Low-alloy chromium-molybdenum-vanadium steel, readily weldable and heat-treatable, with high strength at low weight. Proven as sheet material in frame and structural construction.
Low-alloy quenched and tempered steel with a balanced combination of strength, toughness and weldability — one of our core programmes across all product forms.
Sheet & Plate Grades in Current Stock
This overview is an excerpt from our sheet and plate supply programme, with an emphasis on our current stock. Additional grades and special formats are gladly sourced on short notice.
| German Grade (Werkstoffnummer) | International Grade | Specifications |
|---|---|---|
| 1.4301 | SAE 304 / X5CrNi18.10 (laminate sheet, untreated) | EN10088-3 / AMS5501 / AMS5513 / LN29557-1 |
| 1.4310 | X10CrNi18-8 (condition C1300, spring steel) | EN10151 / AMS5525 |
| 1.4541 | SAE 321 (annealed, thin sheet) | DIN65389 / DIN65390 / AMS5510 |
| 1.4544 | SAE 321 / AISI 321 / Z10CNT18-11 / Z6CNT18-10 | DIN65389 / DIN65390 / ABS5691 / ABS5782 / ASNA3106 / AIR9160C / Airbus QPL |
| 1.4545 | 15-5PH (Cond. A / H1025) | DIN65389 / DIN65390 / AMS5862 |
| 1.4546 | SAE 347 / BS S527 | AMS5512 / BS S100 |
| 1.4548 | 17-4PH / Z6CNU 17-4 (Cond. A) | DIN65389 / DIN65390 / ABS5691 / AMS5604 |
| 1.7214 | 25CrMo4 / 25CD4(S) / BS S142 (quenched & tempered) | DIN65389 / DIN65390 / AIR9160C / BS S100 |
| 1.7218 | 25CrMo4 / 25CD4(S) (softened) | EN10083 |
| 1.7225 | 42CrMo4 | EN10083 |
| 1.7734 | 15CDV6 / FE-PL52 (quenched & tempered) | DIN65389 / DIN65390 / AIR9160C / ASNA3102 |
| — | SAE 4130 (Cond. N / Cond. A) | AMS6345 / MIL-S-6758, standards on request |
1.4546, 1.7225 and SAE 4130 are sourced on request — as are aluminium, nickel and titanium alloys (e.g. Inconel®).

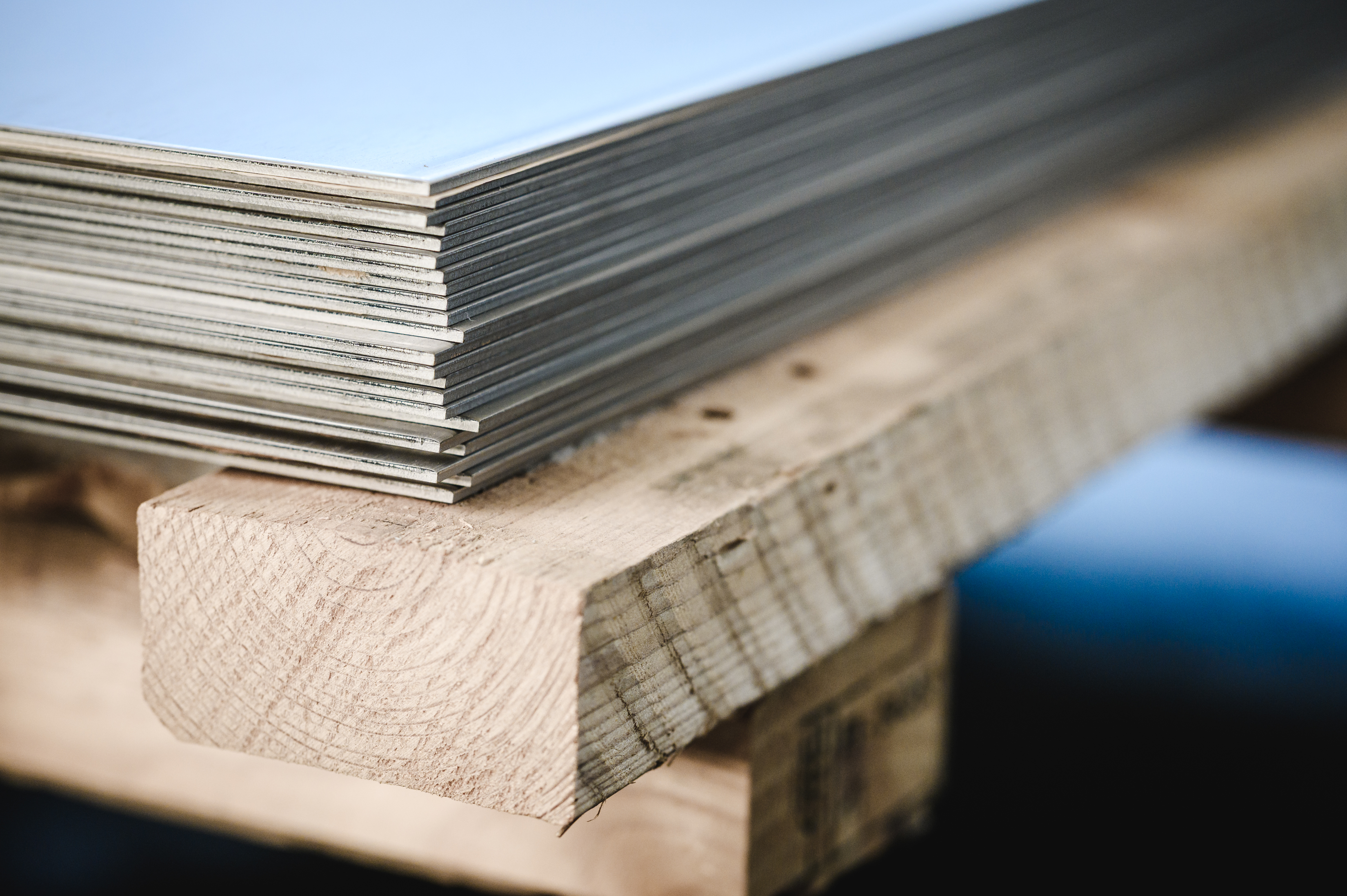

Thickness & Formats from Our Stock
The values below are based on our current sheet and plate stock. The actual available combination of thickness, format and grade varies — please contact us for your specific size.
| Form | Thickness | Format | Note |
|---|---|---|---|
| Thin foil / spring steel | 0.10 – 0.30 mm | 175 × 1,600 mm to 635 × 2,006 mm | e.g. 1.4310, 1.4541 annealed |
| Standard format | 0.40 – 5.00 mm | 1,000 × 2,000 mm / 1,250 × 2,500 mm | Bulk of stock programme, e.g. 1.4544, 15CDV6 |
| US inch format | 0.80 – 4.06 mm | 914 × 1,524 / 1,828 / 3,048 mm | SAE 4130, 15-5PH, 17-4PH |
| Heavy plate | up to 6.00 mm from stock, cut up to 200 mm | per drawing | e.g. 25CrMo4; larger thicknesses on request |
Note: These values reflect our current stock and are not a firm commitment. For binding availability of grade, format and condition, please contact your account manager.
Processing & Custom Services
Beyond the raw semi-finished product, we offer processing services that support your project from the outset.
Flame-Cutting & Sawing
Cutting sheet and plate up to 200 mm thickness to your required size.

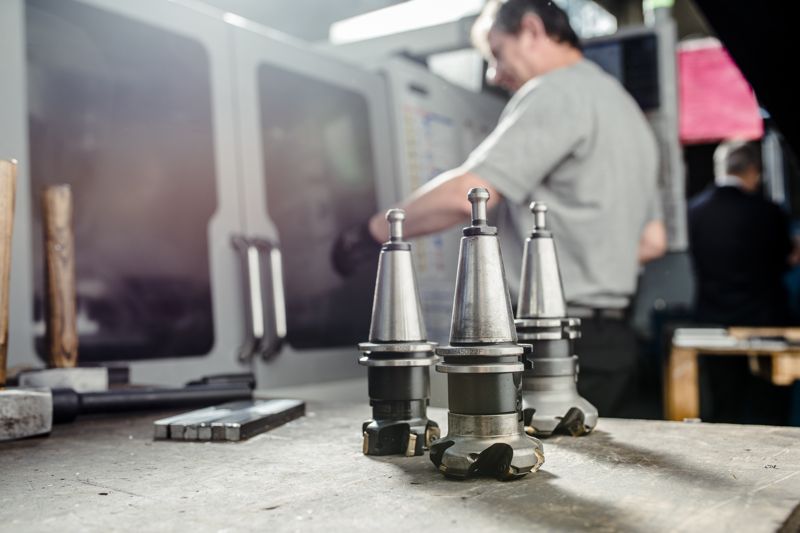

Milling & Surfacing
Precise surface and dimensional machining to drawing.
Heat Treatment
Quenching, tempering and solution annealing to customer specification.

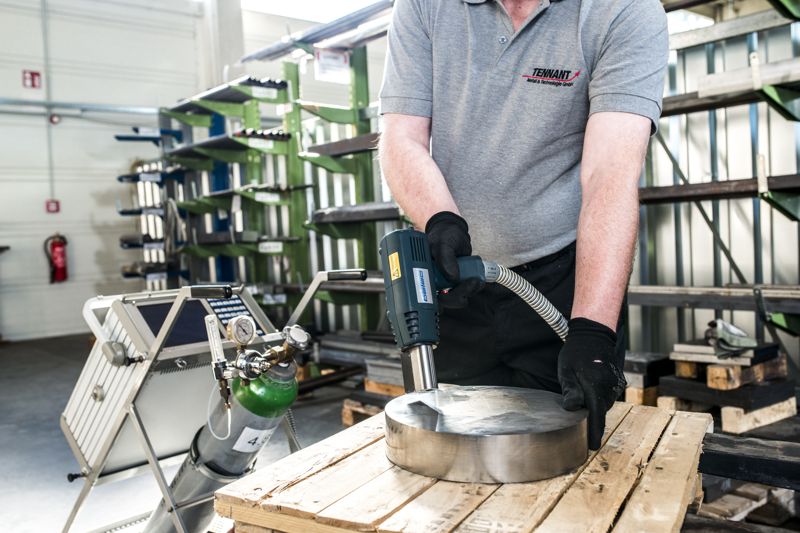

Material Testing
Chemical analysis, hardness testing, ultrasonic inspection.
Demonstrable Quality on Every Sheet & Plate Delivery
Our Inspection Programme for Sheet & Plate
Every heat of sheet material goes through a defined inspection programme before release — from visual inspection to independent laboratory testing.
100% Dimensional & Visual Inspection
Every panel is fully checked for dimensional accuracy and surface condition.
Spectrographic Analysis
Material analysis to confirm chemical composition for each heat.
Mechanical Testing
Tensile, hardness and further tests per customer requirement and specification.
Independent Materials Laboratory
Additional testing through an external, accredited laboratory on request.
Marking to Customer Requirements
Identification of heat, grade and dimension per your specification.
100% Documentation
Complete traceability with a 3.1 mill certificate to EN 10204.
Sheet & Plate — Questions & Answers
Which sheet and plate grades does Tennant Metall regularly hold in stock?
Our deepest stock by far is in 1.4544 (SAE 321), available from stock in nearly all common thicknesses. Further core grades include 1.4545 (15-5PH), 1.4548 (17-4PH), 1.7214/1.7218 (25CrMo4) and 1.7734 (15CDV6). We also carry grades such as 1.4301, 1.4310 and 1.4541. 1.4546, 1.7225 and SAE 4130 are sourced on request. See the full overview in the stock programme section above.
Up to what thickness can sheet and plate cut sizes be supplied?
We supply sheet and plate cut sizes up to 200 mm thickness to your specification, including a 3.1 mill certificate to EN 10204.
Does Tennant Metall also supply sheet in special formats or less common grades?
Yes. Beyond our listed standard programme, we source unusual materials and formats on request — please speak to your account manager.
Does Tennant Metall also supply sheet in aluminium or nickel-base alloys such as Inconel?
Yes. We source and stock sheet and plate in aluminium alloys (e.g. 6061, 7075) as well as nickel-base alloys such as Inconel® on request.
What certifications apply to sheet and plate deliveries?
Tennant Metall is certified as a manufacturer/processor to AS/EN 9100 and as a distributor to AS/EN 9120, holds NCAGE number CH223, and has an Airbus approval (ARP ID 203381).
